Transmission Fluid Temperature Sensor Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the A/T control solenoid valve assembly connector.
  2. Measure the resistance between the sensor-side connector terminal No. 2 and 3 of the A/T control solenoid valve assembly connector.

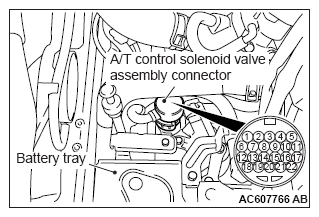

    Fig 1: Identifying Transmission Fluid Temperature Sensor Connector Terminal
    G09665292Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    STANDARD VALUE SPECIFICATION

    Fluid temperature °C (°F) Resistance kΩ
    10 (50) Approx. 6.62
    25 (77) Approx. 3.51
    80 (176) Approx. 0.55
    110 (230) Approx. 0.25
    CAUTION: The transmission fluid temperature sensor cannot be removed or replaced as a single unit. When the transmission fluid temperature sensor needs to be replaced, replace the valve body assembly.
  3. When the resistance of the transmission fluid temperature sensor is outside the standard value, replace the valve body assembly and the harness.
