Transfer Oil Level Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Remove the filler plug and gasket.

Fig 1: Identifying Filler Plug, Drain Plug And Front Exhaust Pipe (Vehicles Without S-AWC)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

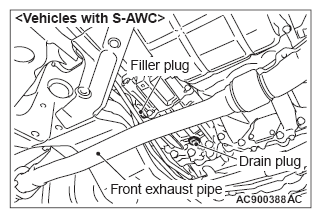

Fig 2: Identifying Filler Plug, Drain Plug And Front Exhaust Pipe (Vehicles With S-AWC)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check that the oil level is in between the upper limit (bottom of the filler plug hole) and the lower limit as shown.
Check that the oil is not excessively foul and has moderate viscosity.
If the oil level is not in between the upper limit and the lower limit, refill the specified gear oil to the bottom of the oil filler plug hole.
Brand name: Mitsubishi Motors Genuine super hypoid gear oil API classification GL-5 SAE 80

Fig 3: Identifying Transfer Oil Limit (Vehicles Without S-AWC)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the filler plug and new gasket, then tighten them to the specified torque.
Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

Fig 4: Identifying Transfer Oil Limit (Vehicles With S-AWC)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
