Transfer Oil Change

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Remove the drain plug and gasket, to drain the transfer oil.
Install the drain plug and new gasket, and tighten to the specified torque.
Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)
Remove the filler plug and gasket, and fill the transfer oil up to the lower edge of the filler plug hole.
Brand name:

Mitsubishi Motors Genuine super hypoid gear oil API classification GL-5 SAE 80

Filling amount:

0.47 dm ³ (0.50 quarts) < Vehicles without S-AWC >

0.45 dm ³ (0.48 quarts) < Vehicles with S-AWC >

Fig 1: Identifying Filler Plug, Drain Plug And Front Exhaust Pipe (Vehicles Without S-AWC)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the filler plug and a new gasket, and tighten them to the specified torque.
Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

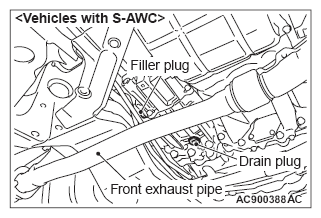

Fig 2: Identifying Filler Plug, Drain Plug And Front Exhaust Pipe (Vehicles With S-AWC)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Identifying Filler Plug Hole, Transfer Oil And Filler Plug
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
