A/T Control Relay Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/T control relay.

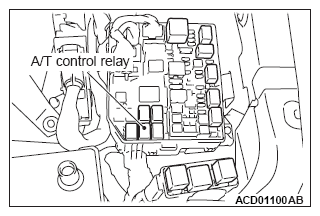

    Fig 1: Identifying A/T Control Relay
    G09665289Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Use jumper wires to connect A/T control relay terminal No.1 to the negative battery terminal and terminal No.2 to the positive battery terminal.
  3. Check for continuity between A/T control relay terminals No.3 and No.4 when the jumper wires are connected to and disconnected from the battery.
    Jumper wire Continuity between terminals No. 3 and No. 4
    Connected Continuity exists (2Ω or less)
    Disconnected No continuity
    Fig 2: Checking Continuity Between A/T Control Relay Terminals No.3 And No.4
    G09665290Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. If there is any problem with the A/T control relay, replace it.
