A/T Control Component Layout

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
Name Symbol Name Symbol
A/T control relay B Output shaft speed sensor A
A/T control solenoid valve assembly connector E Paddle shift switch G
AWC-ECU < Vehicles with S-AWC > F Selector lever assembly (incorporating shift lock solenoid) I
Data link connector H Transaxle control module (TCM) F
Input shaft speed sensor C Transmission range switch D

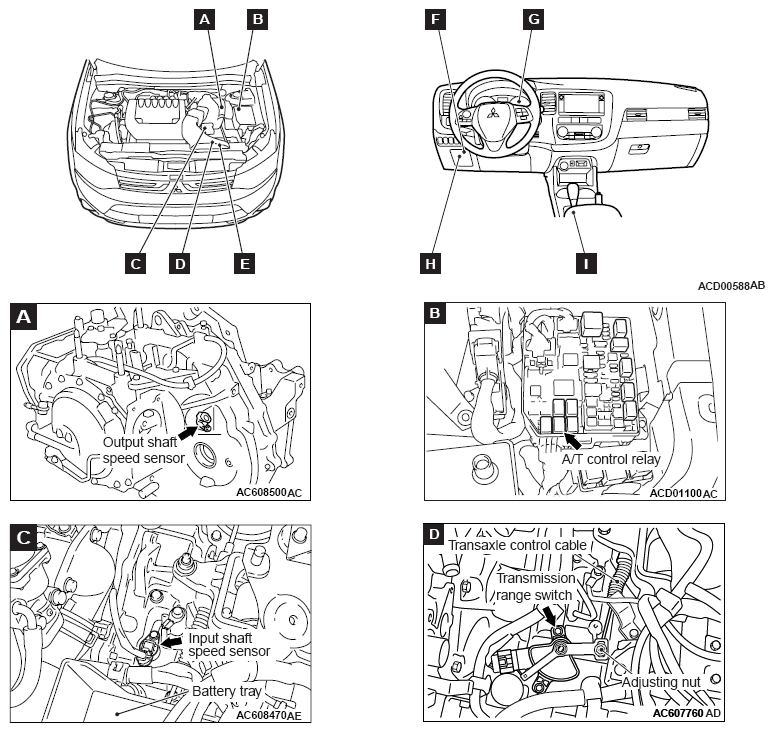

Fig 1: A/T Control Component Layout (1 Of 2)
G09665265Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

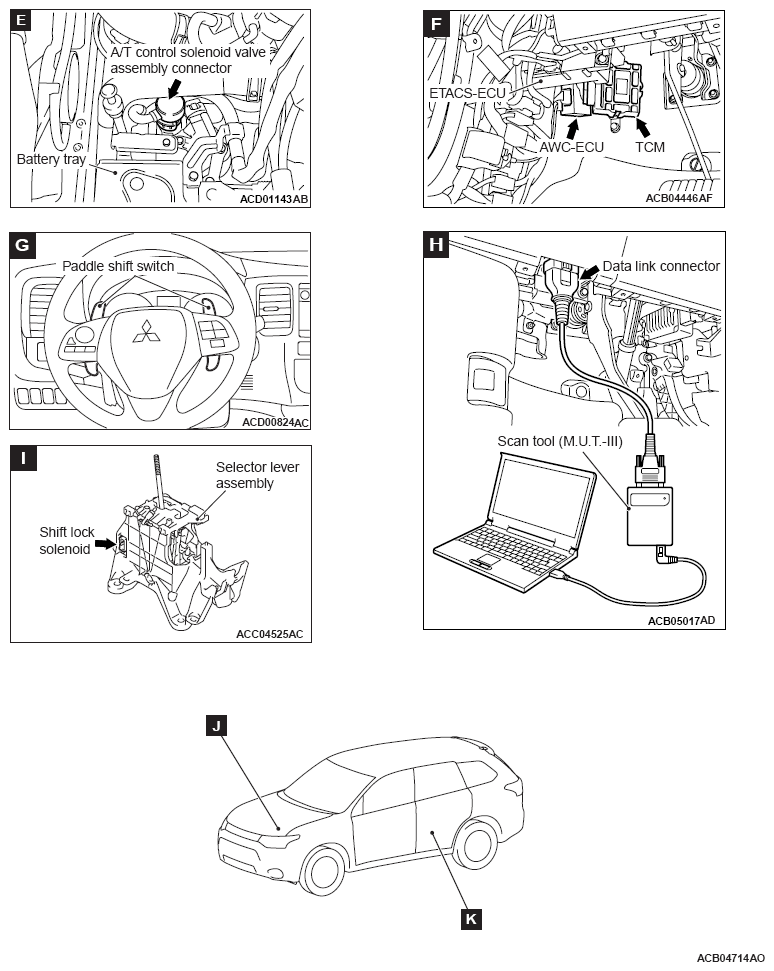

Fig 2: A/T Control Component Layout (2 Of 2)
G09665266Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Name Symbol Name Symbol
Electronic control coupling (front) < Vehicles with S-AWC > J Electronic control coupling (center) < Vehicles with S-AWC > K

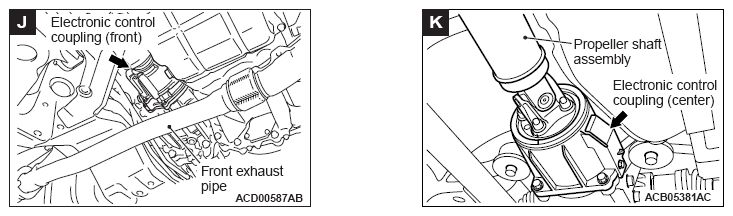

Fig 3: Locating Electronic Control Coupling (Front And Rear)
G09665267Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
