Removal And Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

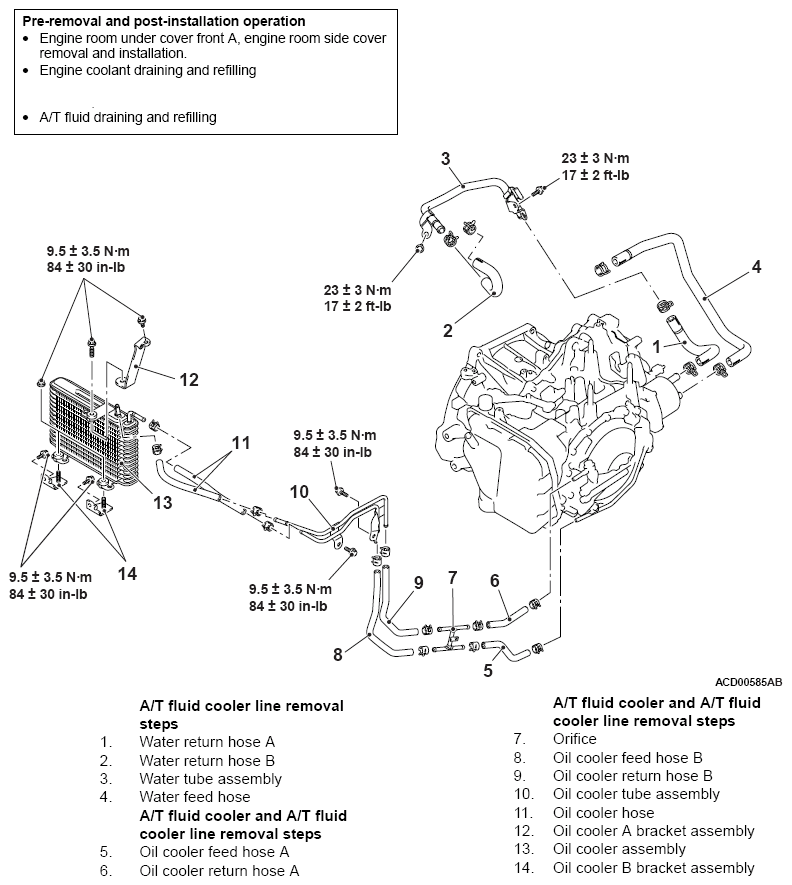

Fig 1: Removing/Installing A/T Fluid Cooler Line With Torque Specifications
G09665310Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
