Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

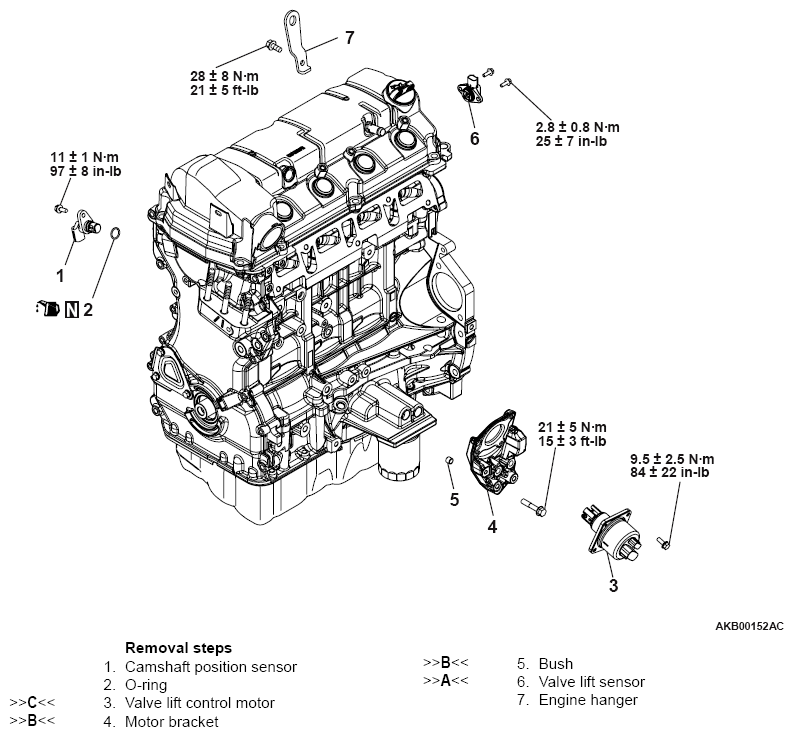

Fig 1: Valve Lift Control Motor With Torque Specification
G09663475Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
