Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Unless specified in this service information , do not overhaul the rocker arm and camshaft assembly. When loosing the bolts other than the bolts installing the rocker arm and camshaft assembly, the adjusted portion at the factory delivery may deviate. Never loosen the bolts.

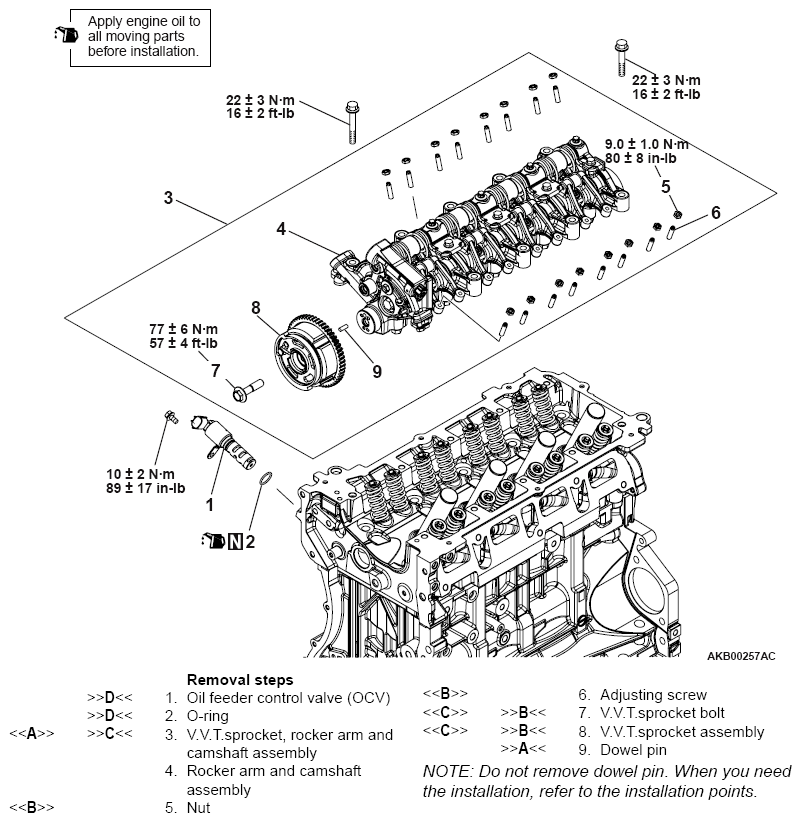

Fig 1: Rocker Arms And Camshaft With Torque Specification
G09663512Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
