>> E << Connecting Rod Bearing Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

When replacing a connecting rod bearing, select the bearing corresponding to the crankshaft pin outside diameter according to the crankshaft pin identification in the table below.

Crankshaft pin		Connecting rod bearing
Identification mark	Journal diameter mm (in)	Identification mark
1	47.966 - 47.972 (1.8884 - 1.8887)	1
2	47.960 - 47.966 (1.8882 - 1.8884)	2
3	47.954 - 47.960 (1.8880 - 1.8882)	3

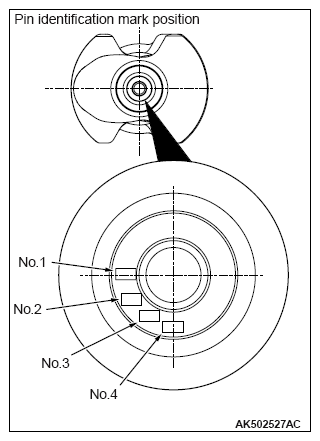

An identification mark of a crankshaft is stamped at the illustrated position by No.

Fig 1: Identifying Crankshaft Identification Mark
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
A connecting rod bearing has an identification mark at the illustrated position.

Fig 2: Identifying Connecting Rod Bearing Identification Mark
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
