Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

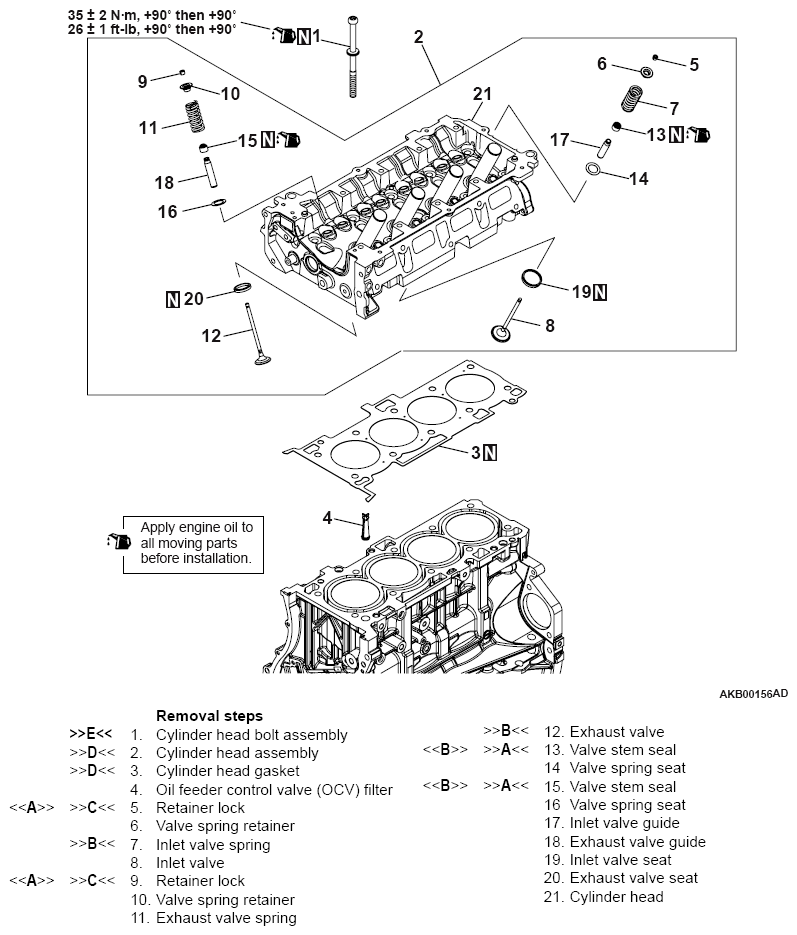

Fig 1: Cylinder Head And Valves With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MD998735: Valve spring compressor
MB992089: Retainer holder C
MB992085: Valve stem seal pliers
MB992922: Valve stem seal installer adjustable
