>> D << Cylinder Head Gasket/Cylinder Head Assembly Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Completely remove the liquid gasket on the upper plane of the cylinder block and the lower plane of the cylinder head.
CAUTION: Sufficiently check that there is no residual oil on the place where degreasing is performed. If fingerprints are left, do not touch it with bare hands after the degreasing, since the oils from your fingers will harm the seal ability.
Use white gasoline to degrease the place specified in the illustration.

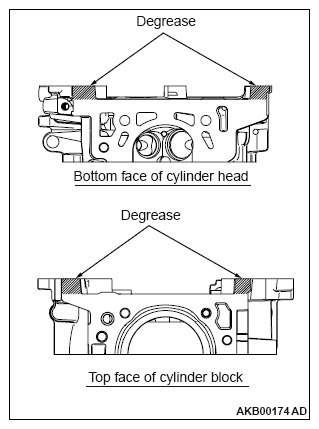

Fig 1: Identifying Cylinder Head Gasket Liquid Gasket Applying Area
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
As shown in the illustration, apply a 2 - 3 mm (0.079 - 0.118 inch) of sealant to the top face of cylinder block.
Specified sealant: ThreeBond 1217G or equivalent
Install the cylinder head gasket.
NOTE: Check that the center of the liquid gasket is located toward the cylinder gasket in the position specified in the illustration.

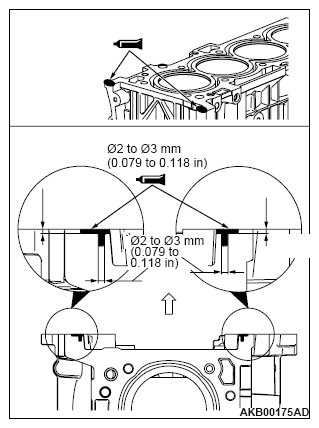

Fig 2: Identifying Cylinder Block Top Face Sealant Applying Area
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
As shown in the illustration, apply a 2 - 3 mm (0.079 - 0.118 inch) of sealant to the top face of cylinder head gasket.
Specified sealant: ThreeBond 1217G or equivalent
Install the cylinder head assembly.

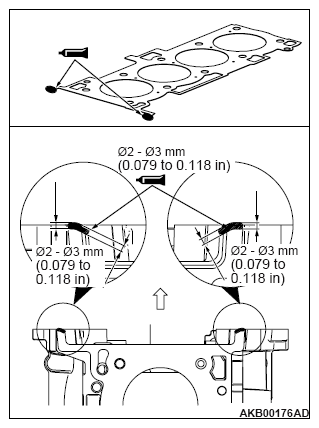

Fig 3: Identifying Cylinder Head Top Face Sealant Applying Area
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
