Removal And Installation < 2. 4 L Engine >

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

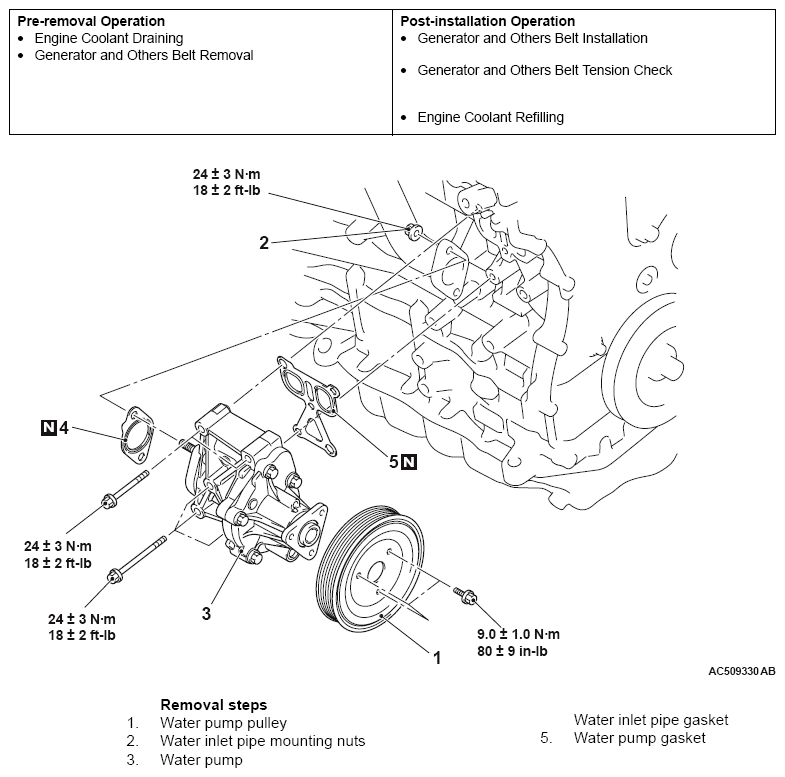

Fig 1: Removing/Installing Water Pump With Torque Specification - 2.4L Engine
G09664631
