Cooling Fan Motor Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the fan motor connector.

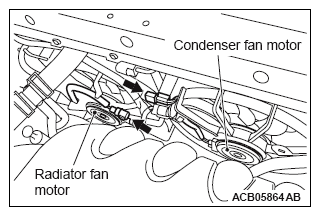

Fig 1: Disconnecting Fan Motor Connector
Check that the fan motor runs when a positive battery terminal is connected to the fan motor-side connector terminal No.1, and terminal No.2 is grounded. Also check to see that there is no abnormal sound emitted from the fan motor at this time.
If the fan motor is defective, replace it (Refer to RADIATOR ).
Connect the fan motor connector.

Fig 2: Checking Fan Motor

Fig 3: Connecting Fan Motor Connector To Battery
