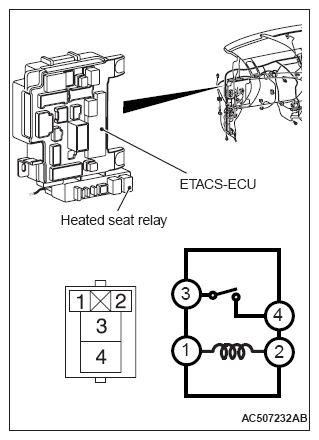

Inspection Of The Heated Seat Relay For Continuity
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
| Battery voltage |
Terminal number |
Normal value |
| At no energization |
3 - 4 |
No continuity |
| At energization [terminal 2 (+) - terminal 1 (-)] |
Continuity exists (2 Ω or less). |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
