Removal And Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and SIDE-AIRBAG MODULE(S) .
Before removing the front seat assembly, refer to OCCUPANT CLASSIFICATION-ECU , OCCUPANT CLASSIFICATION SENSOR and SEAT SLIDE SENSOR connectors connection.

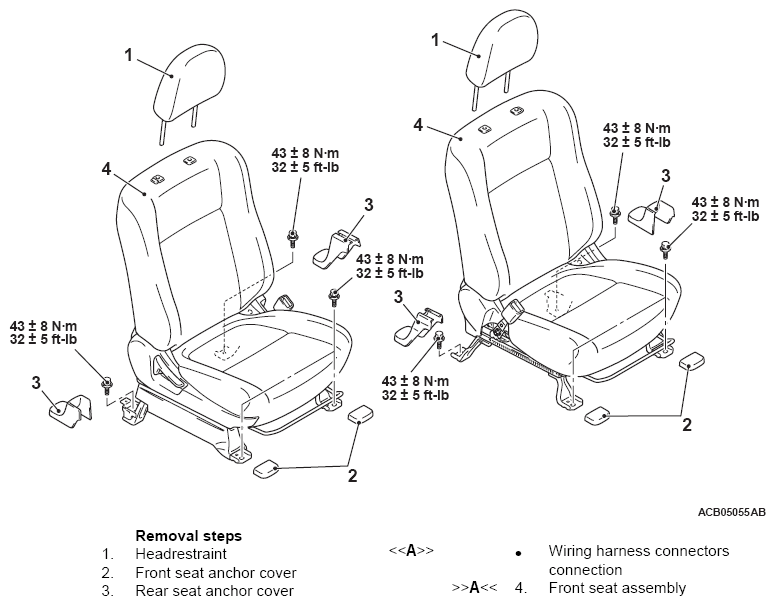

Fig 1: Removing/Installing Front Seat Assembly With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
