Clip And Claw Positions

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

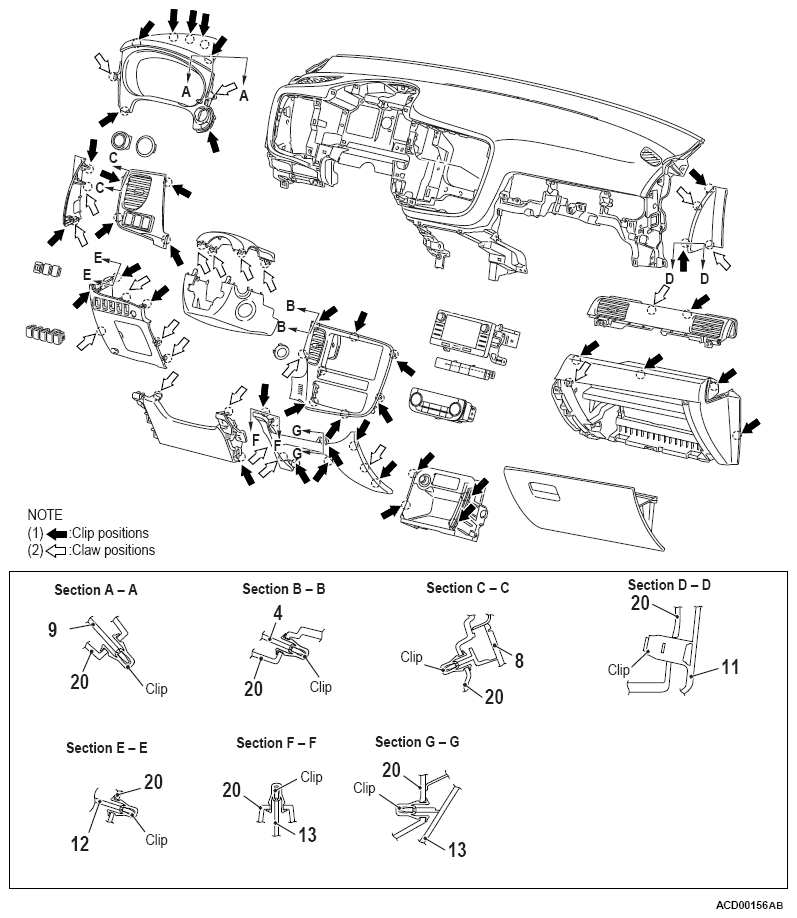

Fig 1: Locating Instrument Panel Assembly Clip And Claw Positions
G09666420Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Each number in the illustration indicates a part number.
