Lubrication Points

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

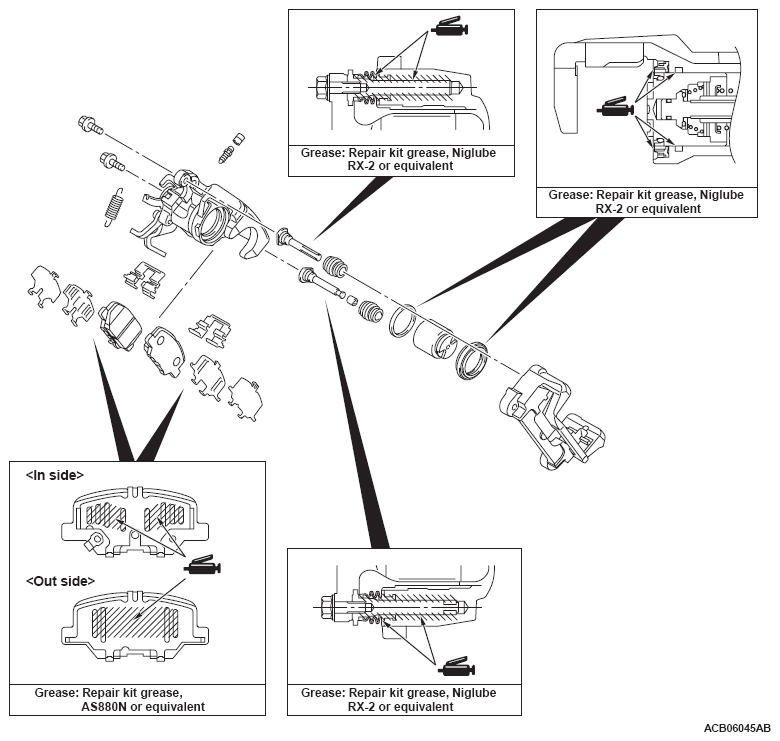

Fig 1: Locating Lubrication Points
G09667586Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
