< Front >

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When replacing, replace both brake pads (right and left) as a set.

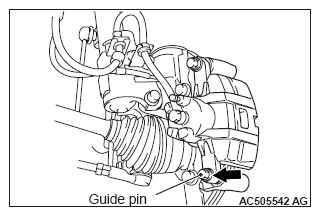

Remove the parts indicated in the figure, swivel the caliper body upward and retain it with a wire or similar tool.

Fig 1: Locating Guide Pin
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the following parts from the caliper support.
1. Shim
2. Brake pad assembly (brake pad and wear indicator assembly)
3. Clip

  Fig 2: Identifying Shim, Brake Pad Assembly And Clip
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Keep grease or other soiling off the pad and brake disc friction surfaces.
Clean the piston part, and press the piston into the cylinder using the special tool piston expander (MB990520).

Fig 3: Pressing Piston Into Cylinder Using Tool Piston Expander
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Assemble the shim, brake pad assembly and clip to the caliper support, and tighten the lock pin to the specified torque.
Tightening torque:

44 ± 5 N.m (32 ± 4 ft-lb).

NOTE: Install the brake pad assembly (with wear indicator) to the inner side of the brake disc, making sure that the wear indicator is located on the top.

Fig 4: Locating Guide Pin
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
