< Rear >
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
If there is a significant difference in thickness between the brake pads at right and left, check the sliding area and the run-out of the brake disc (Refer to BRAKE DISC CHECK
).

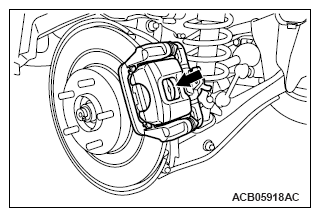

- Visually check the thickness of brake pad from the inspection hole of the caliper body.
Standard value: 9.0 mm (0.4 inch)
Limit: 1.5 mm (0.06 inch)
- If the brake pad thickness is less than the limit value, replace the brake pad (Refer to BRAKE PAD REPLACEMENT ).
