Master Cylinder And Brake Booster

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not touch the push rod in the brake booster because it is already adjusted.

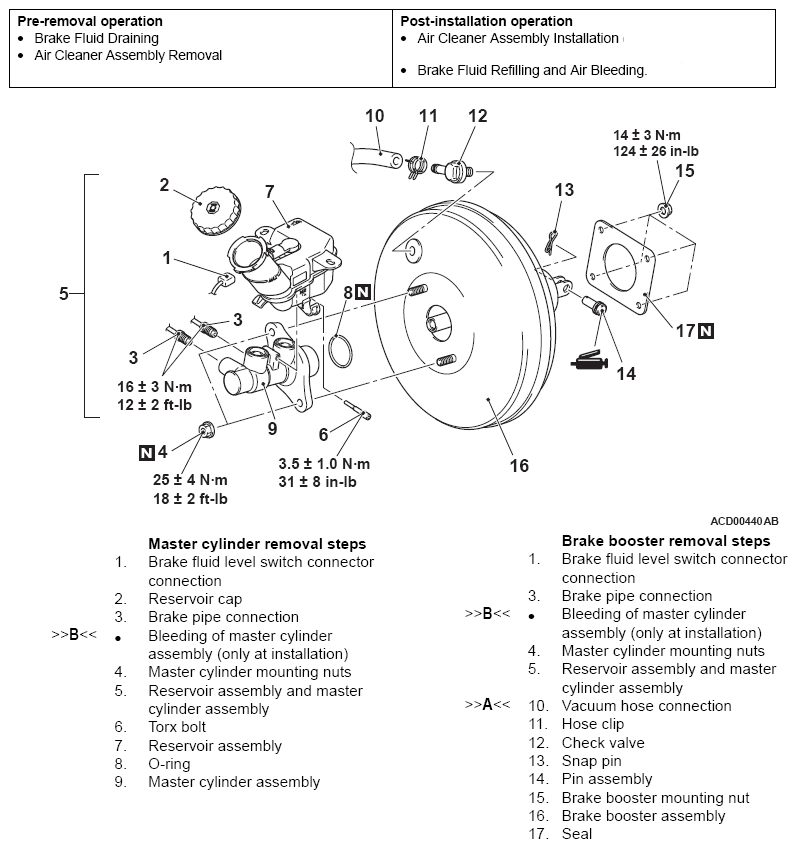

Fig 1: Removing/Installing Master Cylinder Assembly And Brake Booster Assembly With Torque Specification
G09667571Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
