>> A << Vacuum Hose Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Align the mark as shown in the figure to assemble the vacuum hose.

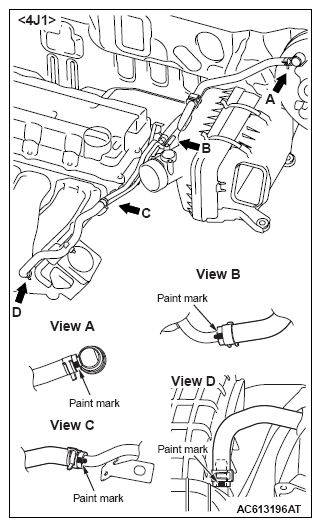

Fig 1: Locating Vacuum Hose Installation Point
G09667573Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Identifying Vacuum Hose And Paint Mark
G09667574Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
