Removal And Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

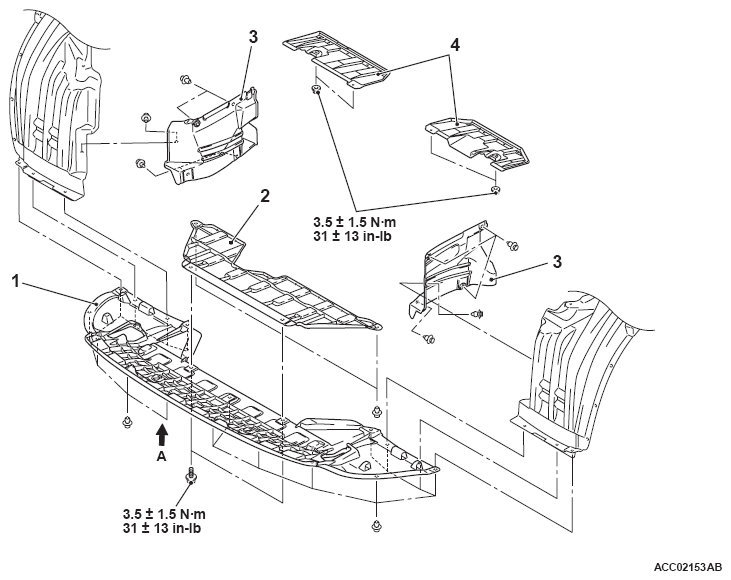

Fig 1: Removing/Installing Under Cover With Torque Specifications
G09666355Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

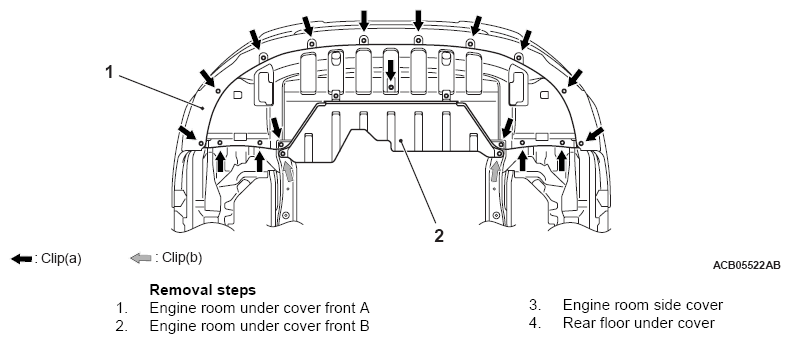

Fig 2: Locating Engine Room Under Cover Clips
G09666356Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
