Engine Oil Pressure Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check engine oil quantity.
    CAUTION: Since sealant is applied to the thread of the engine oil pressure switch, take care not to damage the engine oil pressure switch when removing it.
  2. Remove the engine oil pressure switch. (Refer to REMOVAL AND INSTALLATION - 2.4L ENGINE ) or (Refer to REMOVAL AND INSTALLATION - 3.0L ENGINE )
  3. Install the engine oil pressure gauge.
    NOTE: Use a 1/8 pipe thread adapter.

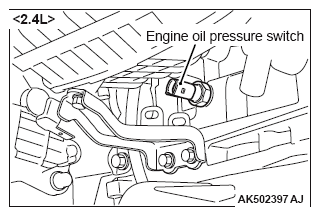

    Fig 1: Identifying Engine Oil Pressure Switch (2.4L)
    G09663940Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

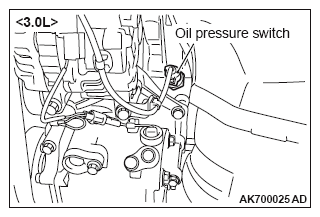

    Fig 2: Identifying Engine Oil Pressure Switch (3.0L)
    G09663941Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Run the engine to warm it.
  5. After the engine has been warmed up, check that engine oil pressure is within the standard value.

    Standard value:

    At idle: 29 kPa (4.2 psi) or more

    At 3,500 r/min: 294 - 686 kPa (43 - 100 psi)

  6. Remove the engine oil pressure gauge.
  7. Install the engine oil pressure switch. (Refer to REMOVAL AND INSTALLATION - 2.4L ENGINE ) or (Refer to REMOVAL AND INSTALLATION - 3.0L ENGINE )
