REMOVAL AND INSTALLATION - 3.0L Engine: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

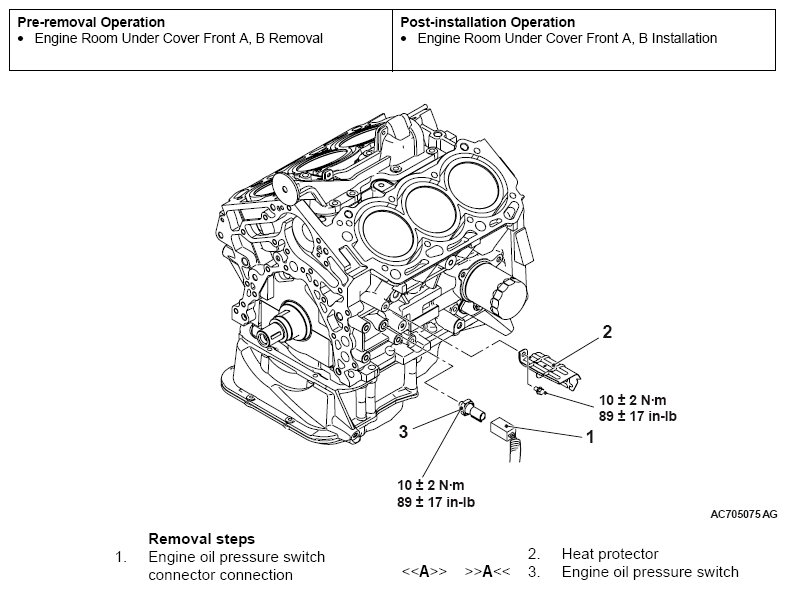

Fig 1: Removing/Installing Engine Oil Pressure Switch Components With Torque Specification (3.0 L)
G09663946Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
