REMOVAL AND INSTALLATION - 2.4L Engine: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

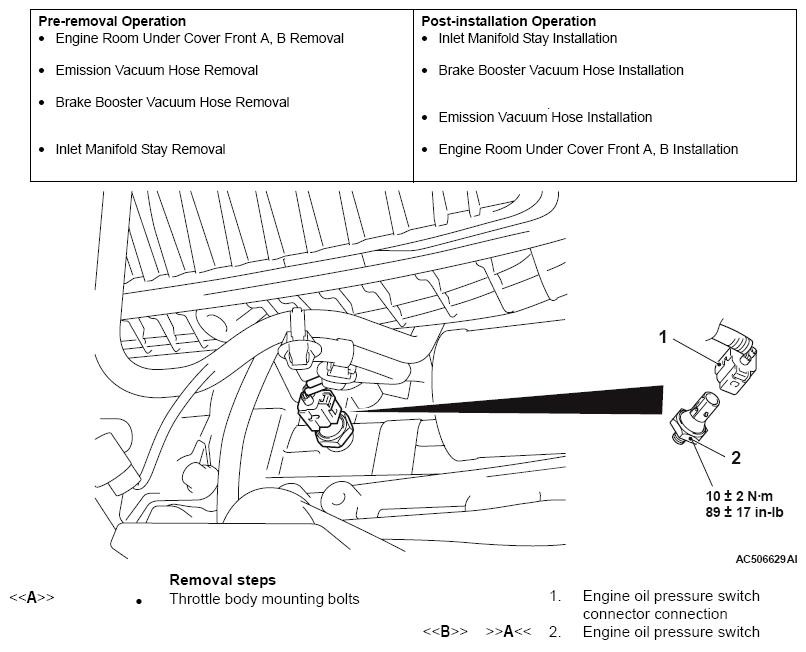

Fig 1: Removing/Installing Engine Oil Pressure Switch Components With Torque Specification (2.4L)
G09663942Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
