<< B >> Timing Belt Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check that the timing marks of each sprocket are aligned.
  2. If the timing belt is to be reused, chalk an arrow on the flat side of the belt, indicating the clockwise direction.
  3. Loosen the center bolt of the tensioner pulley, then remove the timing belt.

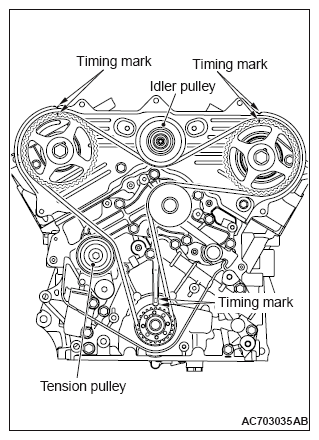

    Fig 1: Aligning Timing Mark Of Each Sprocket
    G09663719Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
