Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

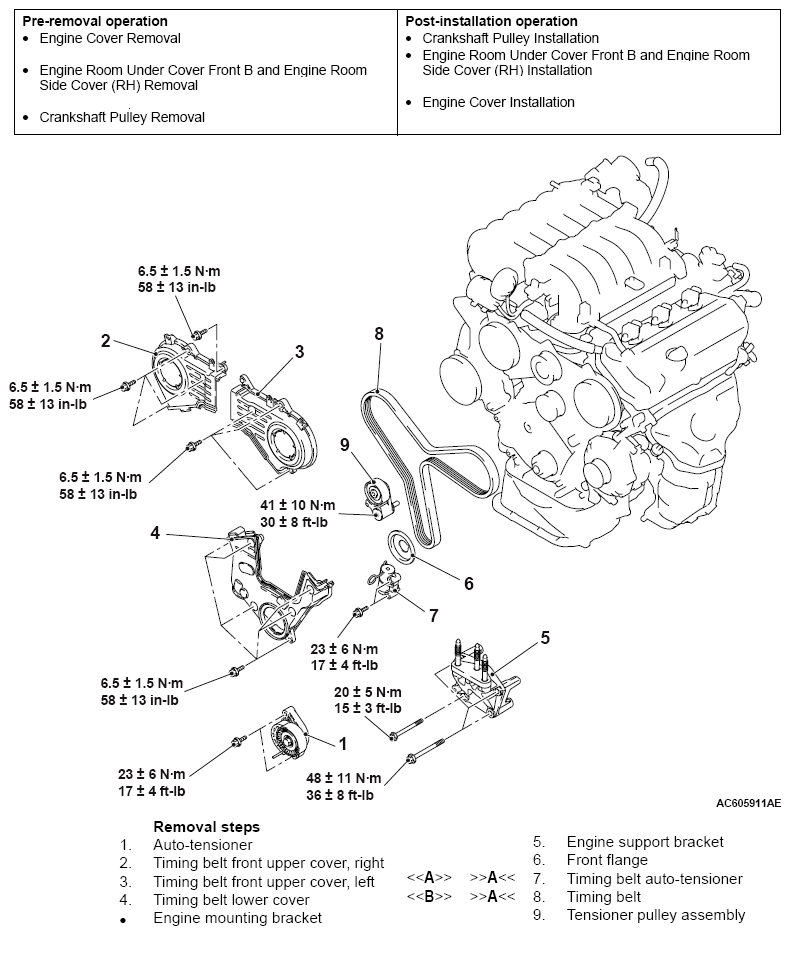

Fig 1: Removing/Installing Timing Belt Components With Torque Specification
G09663715Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
