Special Tools

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
Tool Tool number and name Supersession Application
G09663617Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992080
Belt tension meter set
  1. MB9912081 Belt tension meter
  2. MB992082 Microphone assembly
 Tool not available Drive belt tension (frequency) measurement

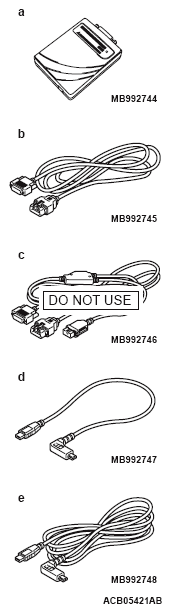

G09663618Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. MB992744 Vehicle communication interface-Lite (V.C.I.-Lite)
  2. MB992745 V.C.I.-Lite main harness A (for vehicles with CAN communication)
  3. MB992746 V.C.I.-Lite main harness B (for vehicles without CAN communication)
  4. MB992747 V.C.I.-Lite USB cable short
  5. MB992748 V.C.I.-Lite USB cable long
 -
  • Ignition timing check
  • Curb idle speed check
  • Idle mixture check
  • Erasing the diagnostic trouble code

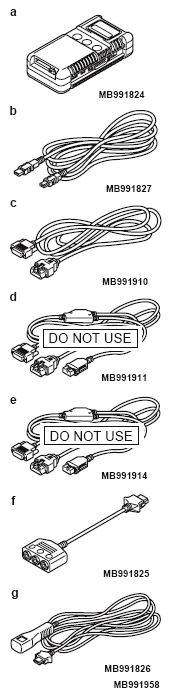

G09663619Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991958
Scan tool (M.U.T.-III sub assembly)
  1. MB991824 Vehicle communication interface (V.C.I.)
  2. MB991827 M.U.T.-III USB cable
  3. MB991910 M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. MB991911 M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. MB991914 M.U.T.-III main harness C (for Chrysler models only)
  6. MB991825 M.U.T.-III adapter harness
  7. MB991826 M.U.T.-III trigger harness
 MB991824-KIT
NOTE: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
  • Ignition timing check
  • Curb idle speed check
  • Idle mixture check
  • Erasing the diagnostic trouble code
G09663620Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990767
Front hub and flange yoke holder		 MB990767-01 Holding the crankshaft pulley and camshaft sprocket
G09663621Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998719
Pin		 MIT308239
G09663622Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998713
Camshaft oil seal installer		 MD998713-01 Press-in of the camshaft oil seal
G09663623Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998777
Camshaft oil seal installer adapter		 - Press-fitting the camshaft oil seal (left bank)
G09663624Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998443
Auto-lash adjuster holder		 MD998443-01 Holding the auto-lash adjuster
G09663625Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998772
Valve spring compressor		 General service tool Compressing valve spring
G09663626Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992182
Valve stem seal installer		 - Valve stem seal installation
G09663627Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998727
Oil pan FIPG cutter		 MD998727-01 Engine lower oil pan removal
G09663628Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998382
Crankshaft front oil seal installer		 MD998382-01 Press-in of the crankshaft front oil seal
G09663629Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998781
Flywheel stopper		 General service tool Securing the drive plate
G09663630Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992075
Handle		 - Crankshaft rear oil seal installation
G09663631Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992183
Crankshaft rear oil seal installer		 -
G09663632Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991614
Angle gauge		 - Cylinder head bolt installation
G09663633Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998716
Crankshaft wrench		 MD998716-01 Rotating the crankshaft when installing the timing belt
G09663634Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992275
Drive belt installer		 - Power steering oil pump drive belt installation
G09663635Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992276
Drive belt remover		 - Power steering oil pump drive belt removal
G09663636Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992208
Engine hanger plate A		 General Service Tool Supporting the engine assembly during removal and installation of the transaxle assembly
G09663637Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991454
Engine hanger balancer		 MZ203827-01 When the engine hanger is used: Supporting the engine assembly during removal and installation of the transaxle assembly
NOTE: Special tool MB991454 is a part of engine hanger attachment set MB991453.
G09663638Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991895
Engine hanger		 Tool not available
G09663639Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991928
Engine hanger
  1. MB991929 Joint (50) x 2
  2. MB991930 Joint (90) x 2
  3. MB991931 Joint (140) x 2
  4. MB991932 Foot (standard) x 4
  5. MB991933 Foot (short) x 2
  6. MB991934 Chain and hook assembly
 Tool not available
