Generator Drive Belt Tension Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Check the drive belt tension after turning the crankshaft clockwise one turn or more.
  1. Make sure that the indicator mark is within the area marked with A in the illustration.
  2. If the mark is out of the area, replace the drive belt. (Refer to REMOVAL AND INSTALLATION  ).
    NOTE: The drive belt tension adjustment is not necessary, as the engine is equipped with an auto-tensioner.

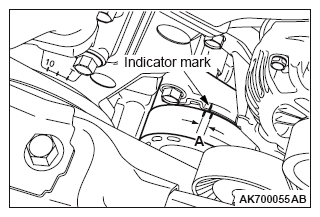

    Fig 1: Identifying Indicator Mark On Drive Belt
    G09663640Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
