Operation Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn OFF the engine, then check to see that the drive belt is not protruding from the pulley width of the auto-tensioner.

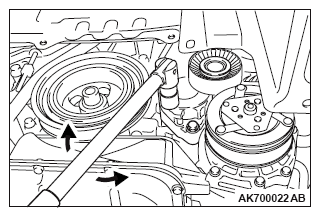

    Fig 1: Removing Drive Belt
    G09663641Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Remove the drive belt. (Refer to REMOVAL AND INSTALLATION  ).
  3. Securely insert the spindle handle or ratchet handle with a 17 mm (11/16-inch) socket into the hexagonal boss of the auto tensioner. Turn the auto-tensioner slowly to the left and right to check and see that there is no binding or noise.
  4. If there are any problems in the procedure 1 or 3, replace the auto-tensioner. (Refer to REMOVAL AND INSTALLATION  ).
  5. Install the drive belt. (Refer to REMOVAL AND INSTALLATION  ).
