<< A >> Engine Lower Oil Pan Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Insert the special tool MD998727 into the groove shown in the illustration. Strike and slide it and then cut the liquid gasket.

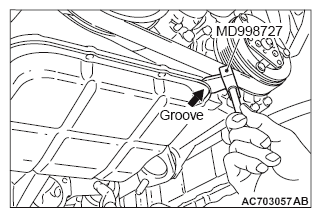

Fig 1: Inserting Special Tool MD998727 Into Groove
G09663692Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
