>> A << Engine Upper Oil Pan/Cover Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove sealant from the oil pan and cylinder block mating surfaces.
  2. Apply a bead of the sealant to the cylinder block mating surface of the engine oil pan as shown.

    Specified sealant: ThreeBond 1227D or equivalent

    NOTE: Install the engine lower oil pan immediately after applying sealant.
  3. Assemble the oil pan to the cylinder block to the engine upper oil pan.
    Fig 1: Identifying Sealant Applying Area On Cylinder Block Mating Surface Of Engine Oil Pan
    G09663694Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Install the bolts to the engine upper oil pan and cover as shown, and tighten them to the specified torque.

    Tightening torque: 9.5 ± 2.5 N.m (85 ± 22 in-lb)

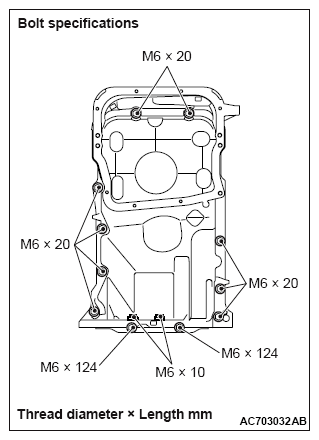

    Fig 2: Identifying Engine Upper Oil Pan And Cover Mounting Bolts
    G09663695Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
