<< B >> Engine Mounting Bracket Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When supporting the engine and transaxle assembly with a garage jack, be careful not to deform the engine oil pan.
  1. Place a garage jack against the engine oil pan with a piece of wood in between to support the engine assembly.
  2. Remove the special tool engine hanger (MB991895 or MB991928) for supporting the engine which were installed when removing the transaxle assembly.

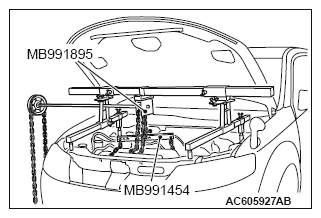

    Fig 1: Supporting Engine Special Tool Engine Hanger (MB991895)
    G09663731Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. The installation position at the right bank side of special tool engine hanger balancer (MB991454) for supporting the engine installed when removing the transaxle assembly has been changed from special tool engine hanger plate A (MB992208) (Right bank) to engine right hanger, and support the engine assembly using the chain block or others.
    Fig 2: Supporting Engine Special Tool Engine Hanger (MB991928)
    G09663732Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Loosen the engine mounting bracket mounting nuts and bolt, and remove the engine mounting bracket.
