Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When the engine assembly replacement is performed, use scan tool MB991958 to initialize the learning value (Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE ).

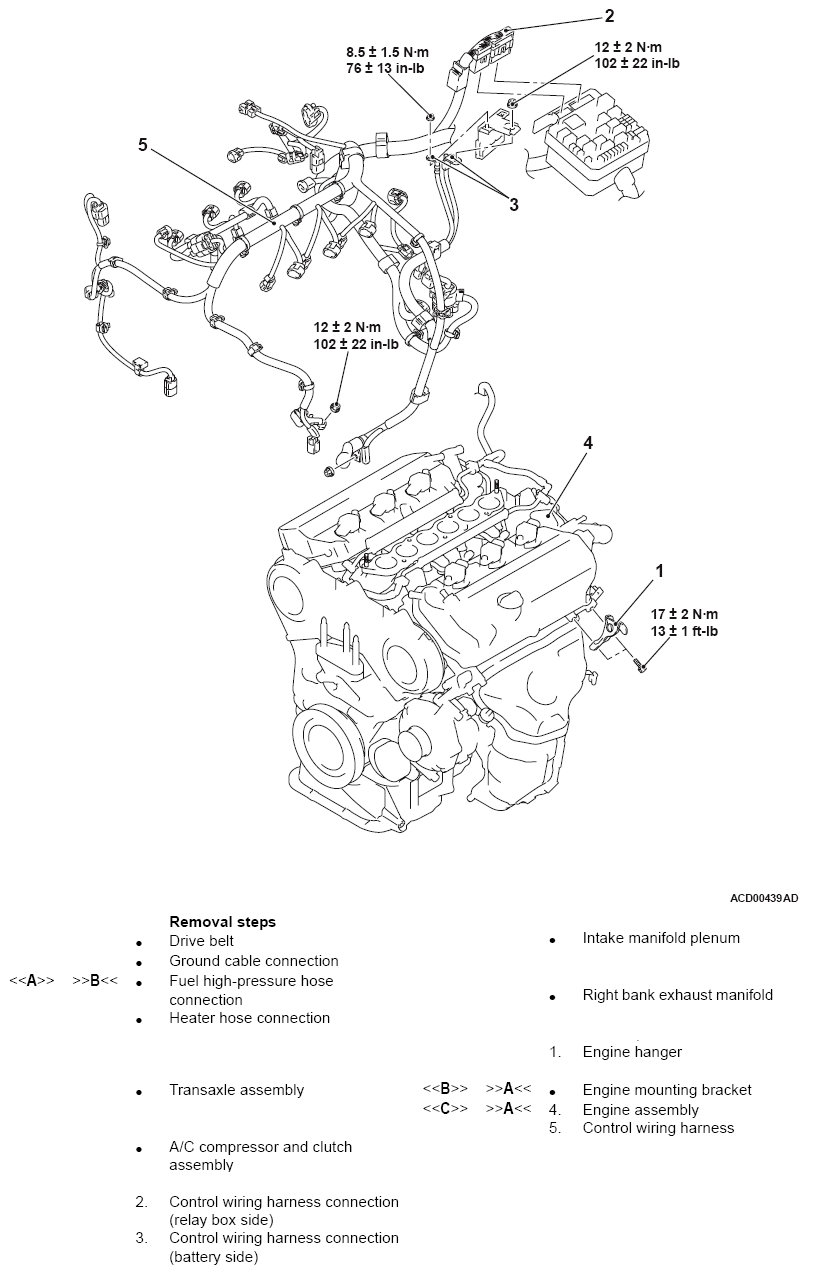

Fig 1: Removing/Installing Engine Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Removing Stopper Of Fuel High-Pressure Hose With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
