>> A << Engine Assembly/Engine Mounting Bracket Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Install the engine assembly, being careful not to pinch the cables, hoses or wiring harness connectors.

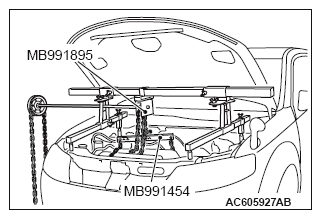

Fig 1: Installing Special Tool Engine Hanger (MB991895/MB991928)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: When supporting the engine and transaxle assembly with a garage jack, be careful not to deform the engine oil pan.
Place a garage jack against the engine oil pan with a piece of wood in between to support the engine assembly.
Remove the chain block or others and install the special tool engine hanger (MB991895 or MB991928) (Refer to TRANSAXLE ASSEMBLY ).

Fig 2: Supporting Engine Using Special Tool Engine Hanger (MB991928)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

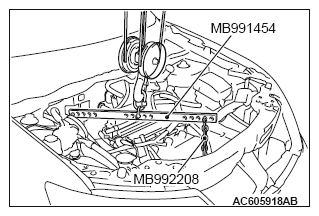

At this time, contrary to the removal, the installation position at the right bank side of special tool engine hanger balancer (MB991454) for supporting the engine has been changed from engine right hanger to special tool engine hanger plate A (MB992208) (Right bank).

Fig 3: Supporting Engine Using Special Tool Engine Hanger (MB991928)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
