<< A >> Drive Plate Bolts Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Use special tool MD998781 to secure the drive plate and remove the drive plate bolts.

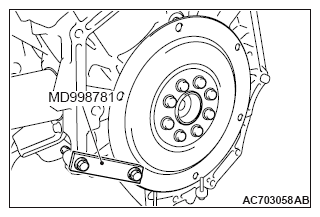

Fig 1: Securing Drive Plate Using Special Tool MD998781
G09663703Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
