>> B << Drive Plate Bolts Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Cleanly remove sealant, oil and dust on the drive plate bolt, the drive plate and the threaded portions of the crankshaft.
  2. Apply oil to the drive plate and the seating surface of the drive plate bolt.
  3. Apply oil to the threaded hole of the crankshaft
  4. Apply sealant to the thread of the drive plate bolts.
    Fig 1: Identifying Sealant Applying Area Thread Of Drive Plate Bolts
    G09663705Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Specified sealant: ThreeBond 1324

  5. Use special tool MD998781 to secure the drive plate in the same manner as removal.
  6. Tighten the drive plate bolts to the specified torque.

    Tightening torque: 76 ± 4 N.m (56 ± 2 ft-lb)

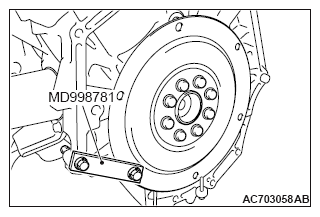

    Fig 2: Securing Drive Plate Using Special Tool MD998781
    G09663706Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
