>> A << Crankshaft Rear Oil Seal Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Use special tool MB992075 and MB992183, press-fit a new crankshaft rear oil seal into the oil seal case.

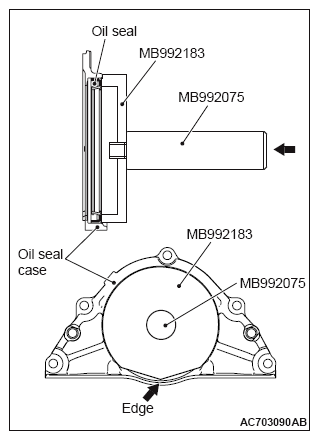

Fig 1: Pressing Crankshaft Rear Oil Seal Into Oil Seal Case
G09663704Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
