<< B >> Crankshaft Pulley Center Bolt/Crankshaft Pulley Washer/Crankshaft Pulley Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Use only the specified special tools, or a damaged pulley damper could result.

Use special tools MB990767 and MD998719 to remove the crankshaft pulley from the crankshaft.

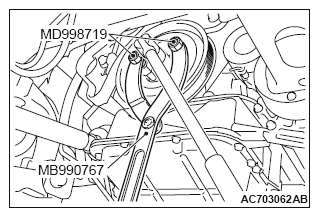

Fig 1: Removing Crankshaft Pulley From Crankshaft Using Special Tools MB990767 And MD998719

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Provide one punch mark on the head of the crankshaft pulley center bolt each time the bolt is removed. Replace the bolt that already has three punch marks. (The evidence of having been tightened three times)

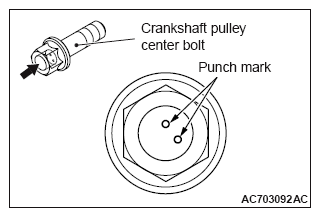

Fig 2: Identifying Punch Mark On Head Of Crankshaft Pulley Center Bolt

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
