<< C >> Camshaft Oil Seal Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make a notch in the oil seal lip section with a knife, etc.
    CAUTION: Be careful not to damage the camshaft and the cylinder head.
  2. Cover the end of a flat-tipped screwdriver with a shop towel and insert into the notched section of the oil seal, and pry out the oil seal to remove it.

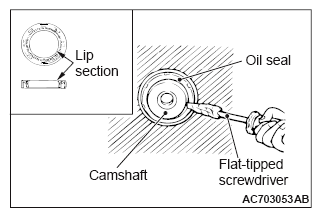

    Fig 1: Removing Camshaft Oil Seal
    G09663673Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
