<< A >> Rocker Arm, Shaft And Lash Adjuster Assembly (Exhaust Side)/Rocker Arm And Shaft Assembly (Intake Side) Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install special tool MD998443 as shown in the illustration so that the lash adjusters will not fall out.
    CAUTION: Never disassemble the rocker arm and shaft assembly.
  2. Loosen the rocker arm and shaft assembly mounting bolt, and then remove the rocker arm and shaft assembly with the bolt still attached.

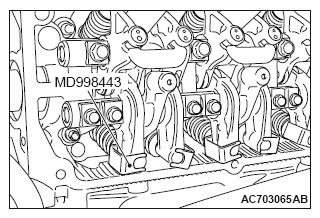

    Fig 1: Identifying Special Tool MD998443
    G09663671Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
