>> D << Rocker Arm And Shaft Assembly (Intake Side)/Rocker Arm, Shaft And Lash Adjuster Assembly (Exhaust Side) Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Install the intake side rocker arm and shaft assembly so that the ø5.5 mm (0.22 inch) holes of rocker arm shaft face the cylinder head side.
Tighten the intake side rocker arm shaft mounting bolts to the specified torque.
Tightening torque: 31 ± 3 N.m (23 ± 2 ft-lb)

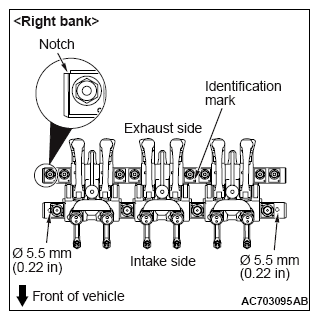

Fig 1: Identifying Identification Mark Of Exhaust Side Rocker Shaft Cap (Right Bank)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the exhaust side rocker arm, shaft and lash adjuster assembly so that the notch of rocker arm shaft is located as shown in the figure.
Check that the identification mark of exhaust side rocker shaft cap is located as shown in the figure.
Tighten the exhaust side rocker arm shaft mounting bolts to the specified torque.

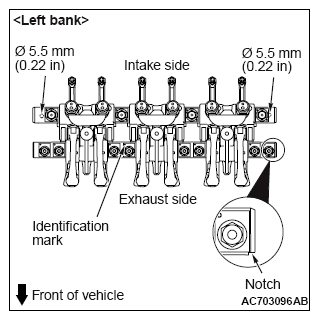

Fig 2: Identifying Identification Mark Of Exhaust Side Rocker Shaft Cap (Left Bank)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Tightening torque: 13 ± 1 N.m (115 ± 8 in-lb)
Remove special tool MD998443.

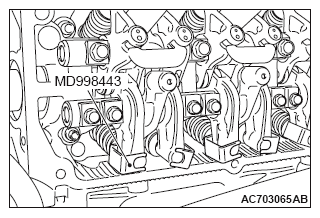

Fig 3: Identifying Special Tool MD998443
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
