< Left Bank >

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

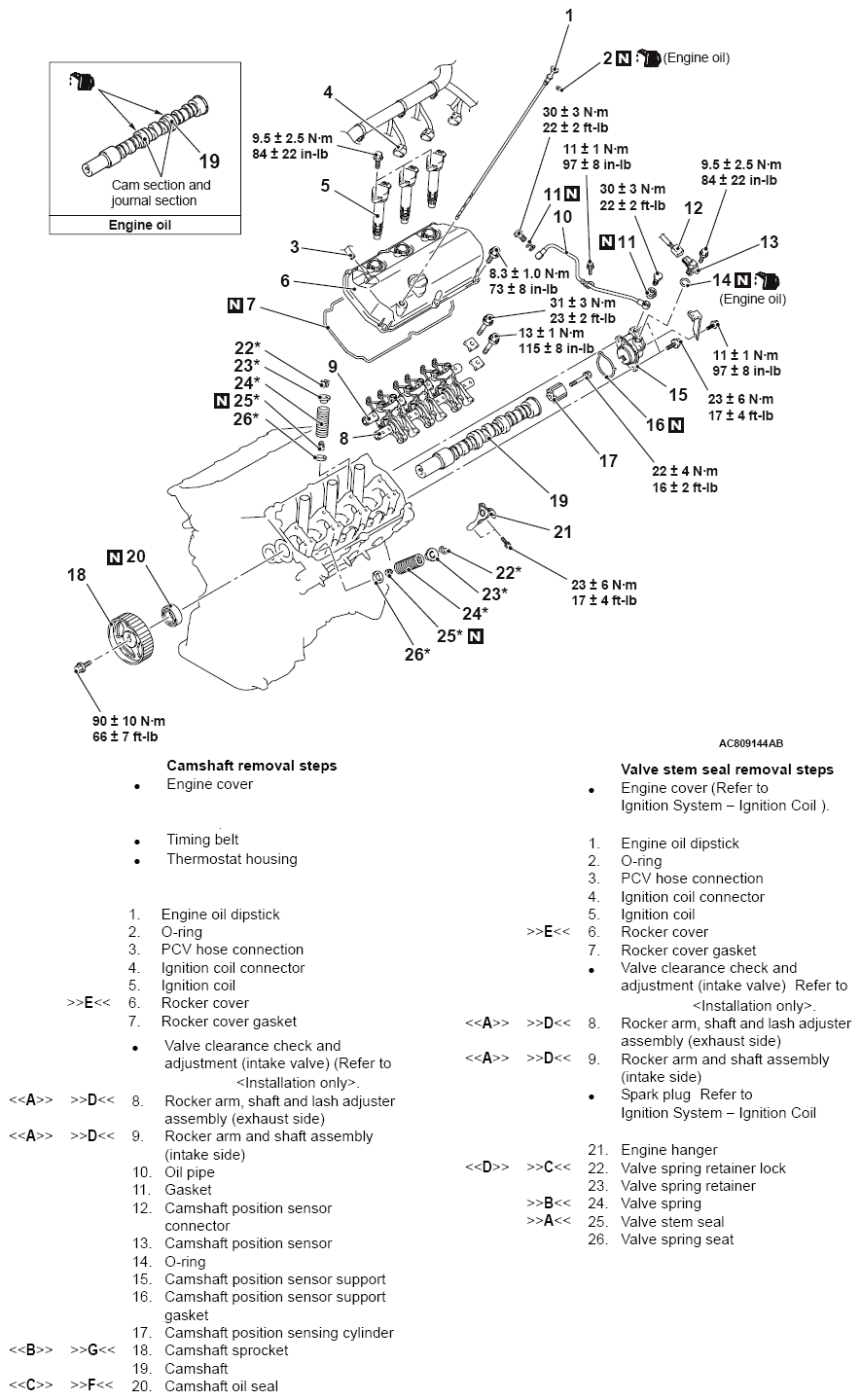

Fig 1: Removing/Installing Camshaft And Valve Stem Seal With Torque Specification (Left Bank)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990767: Front Hub and Flange Yoke Holder
MB992182: Valve Stem Seal Installer
MD998443: Auto-lash Adjuster Holder
MD998713: Camshaft Oil Seal Installer
MD998719: Pin
MD998772: Valve Spring Compressor
MD998777: Camshaft Oil Seal Installer Adapter
