<< B >> Valve Spring Retainer Lock Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Screw in special tool retainer holder attachment (MB992090) to special tool valve spring compressor (MD998772), and assemble special tool retainer holder C (MB992089).

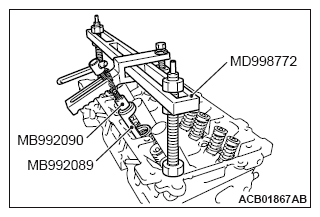

    Fig 1: Identifying Valve Spring Retainer And Special Tools
    G09663359
    CAUTION: When removing the valve spring retainer lock, leave the piston of the cylinder in the TDC (Top Dead Center) position. The valve may fall into the cylinder if the piston is not properly in the TDC position.
  2. Install special tool MD998772 (with special tools MB992090 and MB992089 attached) to the cylinder head and compress the valve spring. Then, remove the valve spring retainer lock.
