Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Remove and assemble the marked parts in each cylinder unit.

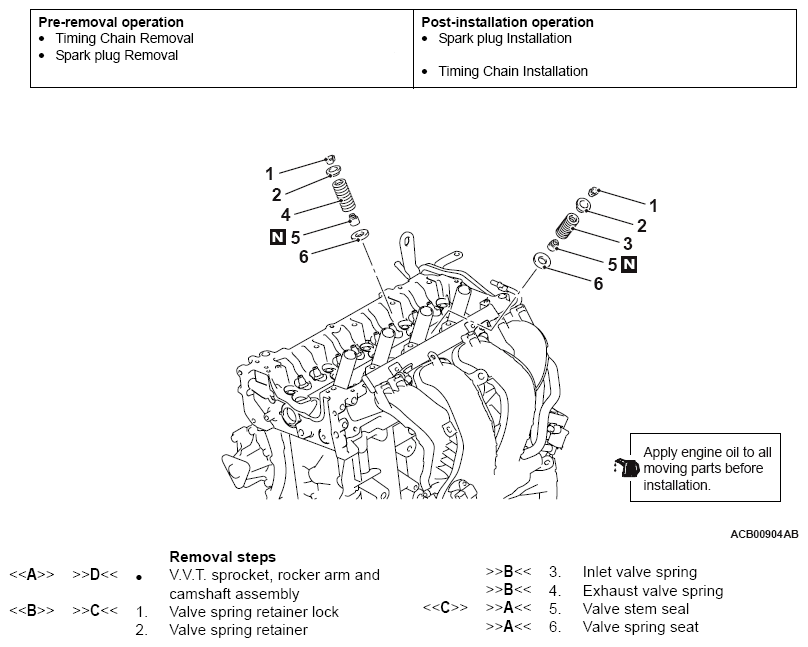

Fig 1: Removing/Installing Valve Stem Seal

Required Special Tools:

MB991928: Engine Hanger
MB991895: Engine Hanger
MB991527: Hanger
MD998772: Valve Spring Compressor
MB992089: Retainer Holder C
MB992090: Retainer Holder Attachment
MB992085: Valve Stem Seal Pliers
MB992922: Valve stem seal installer adjustable
