Special Tools

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
Tool Tool number and name Supersession Application
G09663288
 MB992080
Belt tension meter set
  1. MB9912081 Belt tension meter
  2. MB992082 Microphone assembly
 Tool not available Drive belt tension (frequency) measurement

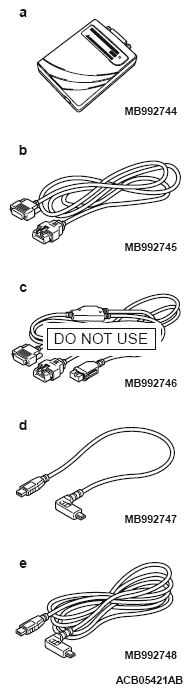

G09663289
  1. MB992744 Vehicle communication interface-Lite (V. C. I.-Lite)
  2. MB992745 V. C. I.-Lite main harness A (for vehicles with CAN communication)
  3. MB992746 V. C. I.-Lite main harness B (for vehicles without CAN communication)
  4. MB992747 V. C. I.-Lite USB cable short
  5. MB992748 V. C. I.-Lite USB cable long
 -
  • Standard ignition timing check
  • Idle speed check

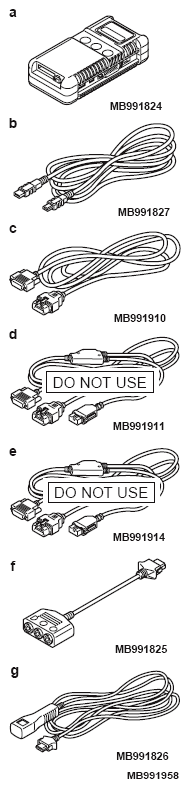

G09663290
 MB991958 Scan tool (M. U. T.-III sub assembly)
  1. MB991824 Vehicle communication interface (V. C. I.)
  2. MB991827 M. U. T.-III USB cable
  3. MB991910 M. U. T.-III main harness A (Vehicles with CAN communication system)
  4. MB991911 M. U. T.-III main harness B (Vehicles without CAN communication system)
  5. MB991914 M. U. T.-III main harness C (for Chrysler models only)
  6. MB991825 M. U. T.-III adapter harness
  7. MB991826 M. U. T.-III trigger harness
 MB991824-KIT
NOTE: MB991826
M.U.T.-III Trigger Harness is not necessary when pushing V. C. I. ENTER key.
CAUTION: For vehicles with CAN communication, use M. U. T.-III main harness A to send simulated vehicle speed. If you connect M. U. T.-III main harness B instead, the CAN communication does not function correctly.
  • Standard ignition timing check
  • Idle speed check
G09663291
 MB992854 Magnet base plate Intake side valve clearance check and adjustment
G09663292
 MD998913 Dial gauge extension Intake side valve clearance check and adjustment
G09663293
 MB990767
Front hub and flange yoke holder		 MB990767-01 Holding the crankshaft pulley
G09663294
 MD998719
Pin		 MIT308239
G09663295
 MD998772
Valve spring compressor		 General service tool Valve spring compression
G09663296
 MB992090
Retainer holder attachment		 -
G09663297
 MB992089
Retainer holder C		 -
G09663298
 MB992085
Valve stem seal pliers		 - Valve stem seal removal
G09663299
 MB992922 Valve stem seal installer adjustable Valve stem seal press-fitting
G09663300
 MD998727
Oil pan FIPG cutter		 MD998727-01 Oil pan removal
G09663301
 MB991883
Flywheel stopper		 General service tool Supporting the drive plate
G09663302
 MD998718
Crankshaft rear oil seal installer		 MD998718-01 Press-fitting the crankshaft rear oil seal
G09663303
 MB991448
Bush remover and installer base		 MB991448-01 Press-fitting the crankshaft front oil seal
G09663304
 MB991614
Angle gauge		 - Balancer shaft and oil pump module bolt installation
G09663305
 MB991928
Engine hanger
  1. MB991929 Joint (50) x 2
  2. MB991930 Joint (90) x 2
  3. MB991931 Joint (140) x 2
  4. MB991932 Foot (standard) x 4
  5. MB991933 Foot (short) x 2
  6. MB991934 Chain and hook assembly
 Tool not available When the engine hanger is used: Supporting the engine assembly during removal and installation of the transaxle assembly
NOTE: Special tool MB991454 is a part of engine hanger attachment set MB991453.
G09663306
 MB991895
Engine hanger		 Tool not available
G09663307
 MB992906
Engine hanger attachment		 -
G09663308
 MB991527
Hanger		 Tool not available
G09663309
 MB991454
Engine hanger balancer		 MZ203827-01
G09663310
 MB992853
Engine hanger plate		 -
G09663311
 MB991956
Engine hanger plate		 -
