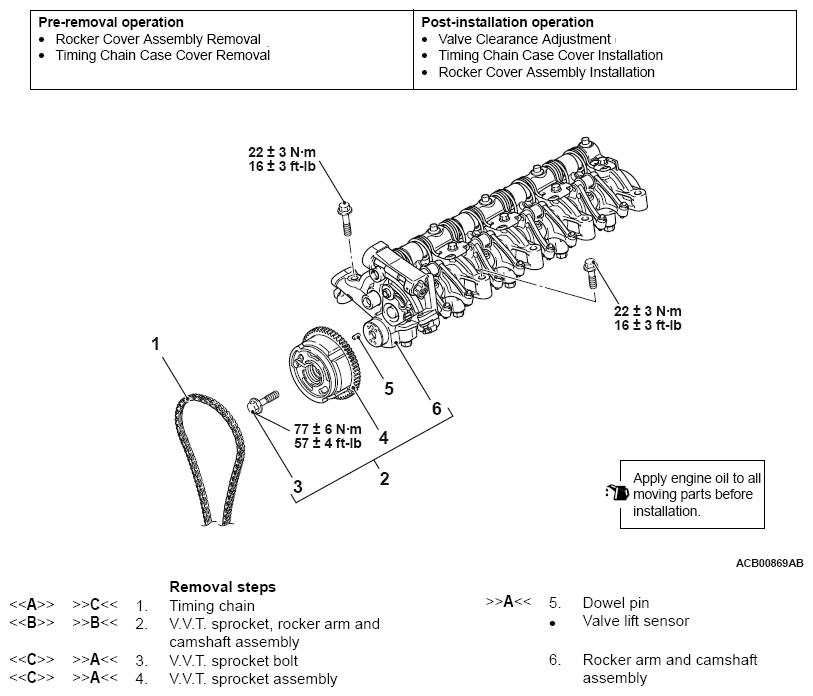

Removal And Installation: Notes
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Do not disassemble any rocker arm and camshaft assembly components other than those described in this service information . Never loosen any bolts other than the rocker arm and camshaft assembly mounting bolts as relevant components have been adjusted at factory.
- If the rocker arm and camshaft assembly is installed, removed or replaced, initialize the learned value by using scan tool (M. U. T.-III) (Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE ).
NOTE:
Do not remove the dowel pin. When it must be assembled, refer to SERVICE POINTS OF REMOVAL .
