<< B >> Engine Mounting Bracket Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When supporting the engine assembly with a garage jack, be careful not to deform the engine oil pan.
  1. Place a garage jack against the engine oil pan with a piece of wood in between to support the engine assembly.
  2. Remove the special tool for holding the engine assembly, which has been set when the transaxle assembly is removed.
    • Engine hanger (MB991928 or MB991895)
    • Hanger (MB991527)
    • Chain of engine hanger balancer (MB991454)
    • Engine hanger plate (MB992853)
  3. Remove the motor bracket (Refer to VALVE LIFT CONTROL MOTOR  ).

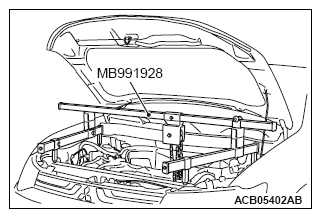

    Fig 1: Identifying Engine Assembly And Special Tool (MB991928)
    G09663419

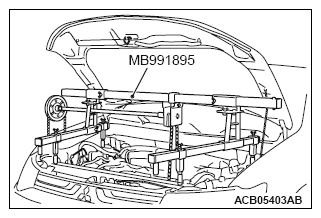

    Fig 2: Identifying Engine Assembly And Special Tool (MB991895)
    G09663420

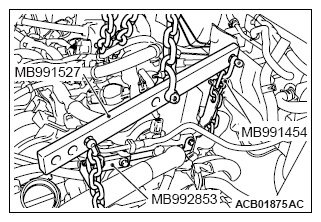

    Fig 3: Identifying Transaxle Assembly And Special Tools
    G09663421
  4. Install special tool engine hanger plate (MB991956) to the motor bracket mounting of the cylinder head.

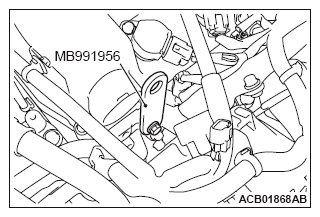

    Fig 4: Identifying Engine Assembly And Special Tool (MB991956)
    G09663422
  5. Set the following special tools to special tool (MB991956) and the engine hanger to hold the engine assembly.
    • Hanger (MB991527)
    • Chain of engine hanger balancer (MB991454)
  6. Operate a garage jack so that the engine weight is not applied to the engine mounting insulator, and remove the engine mounting bracket.

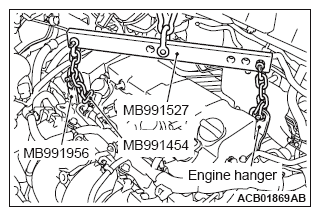

    Fig 5: Identifying Engine Hanger And Special Tools
    G09663423
