>> A << Crankshaft Rear Oil Seal Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a small amount of engine oil to the entire inner diameter of the crankshaft rear oil seal lip.
  2. Using special tool crankshaft rear oil seal installer (MD998718), press in the crankshaft rear oil seal up to the cylinder block assembly end surface.

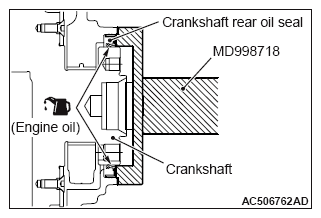

    Fig 1: Identifying Crankshaft, Rear Oil Seal And Special Tool (MD998718)
    G09663378

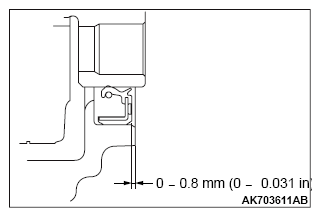

    Fig 2: Identifying Crankshaft Rear Oil Seal Installation Dimensions
    G09663379
