>> A << Crankshaft Sprocket/Balancer Timing Chain/Balancer Shaft And Oil Pump Module Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. When installing the new balancer shaft and oil pump module, apply oil to the oil pump in the balancer shaft and oil pump module and the balancer shaft bearing as follows.
    1. Clean the inside of the removed engine oil pan, and put the balancer shaft and oil pump module into the engine oil pan with its oil inlet port facing up.
    2. Pour new engine oil until two-thirds of the balancer shaft and oil pump module is soaked.
    3. Fill the engine oil (approximately 50 cm3 [3.05 cu.in.]) into the balancer shaft and oil pump module from the oil inlet port.
      Fig 1: Filling Engine Oil Into Balancer Shaft And Oil Pump Module
      G09663398
    4. Turn the balancer shaft sprocket of the balancer shaft and oil pump module clockwise four rotations or more to apply the engine oil to the entire area of the oil pump and the balancer shaft bearing.
      Fig 2: Turning Balancer Shaft Sprocket Of Balancer Shaft And Oil Pump Module
      G09663399
  2. With the link marks (orange or blue) of balancer timing chain aligned with the timing marks of balancer sprocket and crankshaft sprocket, install the balancer shaft and oil pump module together with the balancer timing chain and crankshaft sprocket as one unit to the cylinder block. At this time, securely bring the balancer shaft and oil pump module into contact with the rudder frame mounting area.
  3. Apply an adequate and minimum amount of engine oil to the threads and bearing surfaces of the balancer shaft and oil pump module bolts.

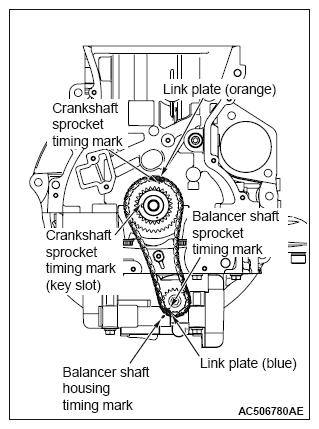

    Fig 3: Identifying Balancer Shaft Housing, Crankshaft And Balancer Shaft Sprocket Timing Mark
    G09663400
  4. Tighten the balancer shaft and oil pump module bolts to the specified torque of 20 N.m (15 ft-lb) in the order of number shown in the figure.
  5. Retighten the balancer shaft and oil pump module bolts to the specified torque of 44 N.m (33 ft-lb) in the order of number shown in the figure.
  6. Loosen each balancer shaft and oil pump module bolt fully in the reverse sequence to that shown.
  7. Tighten the balancer shaft and oil pump module bolts to the specified torque of 20 N.m (15 ft-lb) in the order of number shown in the figure.
    Fig 4: Balancer Shaft And Oil Pump Module Mounting Bolt Tightening Sequence
    G09663401
  8. After tightening to the specified torque, tighten the balancer shaft and oil pump module bolts to 135 degrees, using special tool MB991614, in the order of number shown in the figure.
    Fig 5: Balancer Shaft And Oil Pump Module Mounting Bolt Tightening Sequence
    G09663402

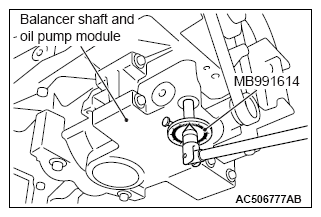

    Fig 6: Identifying Balancer Shaft And Oil Pump Module And Special Tool (MB991614)
    G09663403
